AC150H Class H HEPA Dust Extractor for Concrete Grinding & Power Tools | Automatic Filter Cleaning

Short Description:

AC150H is a portable one motor HEPA dust extractor with Bersi innovated auto clean system, 38L tank volume. There are 2 filters rotate self clean to maintain high suction always. The HEPA filter captures 99.97% of particles at 0.3 microns. It is a portable and lightweight professional vacuum cleaner for dry fine dust.

AC150H is a professional Class H dust extractor designed for concrete grinding, cutting, drilling and surface preparation. With BERSI’s patented automatic filter cleaning technology, it maintains stable suction during continuous operation, making it ideal for contractors, rental companies and professional flooring specialists.

This machine is formally Class H certified by SGS with EN 60335-2-69:2016 standard,secure for building materials that may contains potential high risk.

Send email to us

Product Detail

Product Tags

Main features:

1.Automatic Clean: The innovated auto clean system ensure the vacuum works at high suction all the time without clogging, provides a continuous use mode. Time and labor savings greatly.
2.Equipped with 2 HEPA filters: stops 99.97% of fine dusts at 0.3 µm.
3.38L injection molding tank provide big storage capacity.
4.Power socket for power tool use activates automatically on start/shut-down of the vacuum cleaner.
5.Automatic trailing mechanism for emptying the suction hose completely
6.Large and robust wheels and castors built to withstand the tough construction site.
7.Cable wrap for convenient cord storage.
8.Practical accessory case and storage area.

Models and specifications:

Model	Unit	AC150H	AC150H
Voltage		220V-240V 50/60Hz	110V-120V 50/60Hz
Power	kw	1.2	1.3
Power	hp	1.7	1.85
Current	amp	5.2	10.8
Water lift	mbar	250	250
Water lift	inch”	104	104
Airflow（max)	cfm	154	153
Airflow（max)	m³/h	262	260
Auto clean		yes	yes
Filter quantity		2	2
Filter efficiency		HEPA, ＞99.97%@0.3μm
Airflow adjustable		Yes	Yes
Power socket		10A	10A
Power tool quick start		Yes	Yes
Remote control start		Optional	Optional
Dimension	inch	15.1519.722.4
Dimension	mm	385500570
Tank volume	Gal/L	10/38
Weight	lbs/kg	29/13.5

Applications:

Concrete floor grinding
Concrete cutting
Wall chasing
Surface preparation
Diamond polishing
Construction site dust collection
Stone fabrication
Masonry drilling
Renovation projects

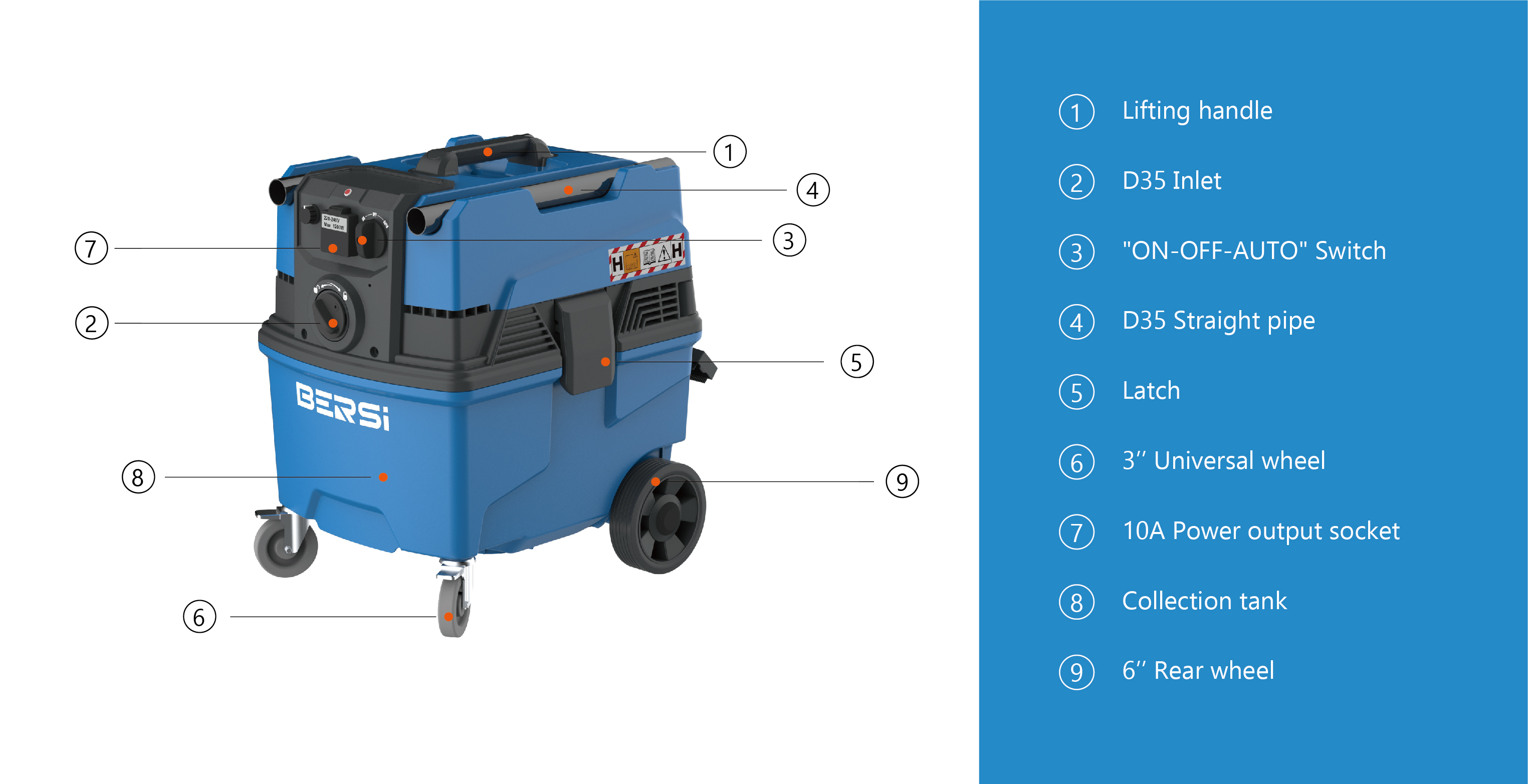

Detailes

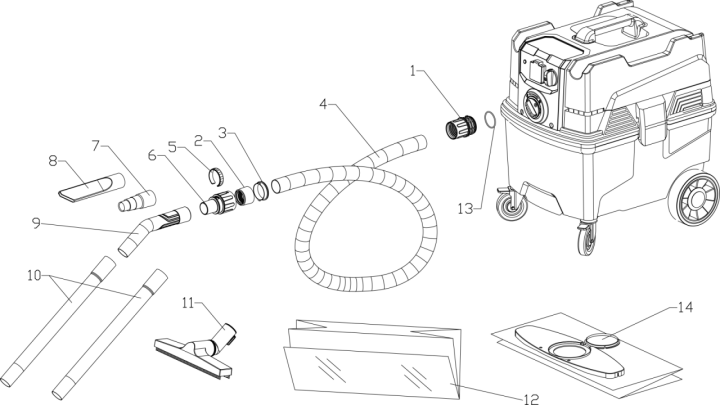

Packing list

S/N	P/N	Description	Quantity	Specifics
1	C3067	D35 Hose cuff 1-vaccum side	1PC
2	C3086	D35 Thread tightening head	2PCS
3	C3087	D35 Bayonet coupling	2PCS
4	S8071	D35 Anti-static hose	4M
5	C3080	Airflow adjust ring	1PC
6	C3068	D35 Hose cuff 2-handle side	1PC
7	S8072	D35 Reducer adapter	1PC
8	S8073	D35 Crevice tool	1PC
9	C3082	D35 Bent wand handle	1PC
10	S8075	D35 Straight wand	2PCS
11	S8074	D35 Floor brush	1PC	L300
12	S8078	AC150 PE dust bag	5PCS
13	S0112	O shape ring	1PC	48*3.5
14	S8086	AC150H Non-woven dust collection bag	1PC
